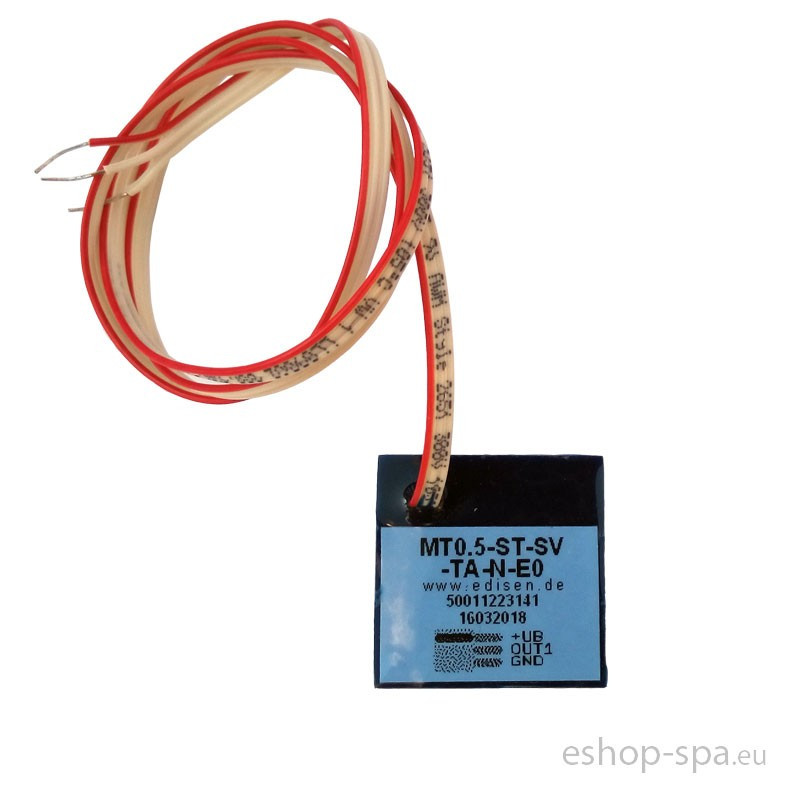

EDISEN MT0.5-ST-SV-TA-N-E0 capacitive sensor
€47.2
VAT included
In stock – usually dispatched within 2–5 business days.
Capacitive switch.
Delivery policy
Return policy
The EDISEN MT0.5 capacitive switch is a compact button installed behind an electrically non-conductive surface such as plastic, wood, glass, or ceramic. Bringing a finger close sends an impulse to the control unit. The water-resistant switch can control LEDs, relays, or a control-system input and attaches with its integrated adhesive layer.
Parameters
10–40 V DC; 25 µA; max. 600 mA; cable 50 cm; IP67; automatic calibration; 1 activation/s; E0 material thickness: glass 15 mm, plastic 10 mm, MDF 10 mm, air 4 mm.
401308
