RMV4 with MP3 + 2 temperature sensors
€2,436.9
VAT included
In stock – usually dispatched within 2–5 business days.

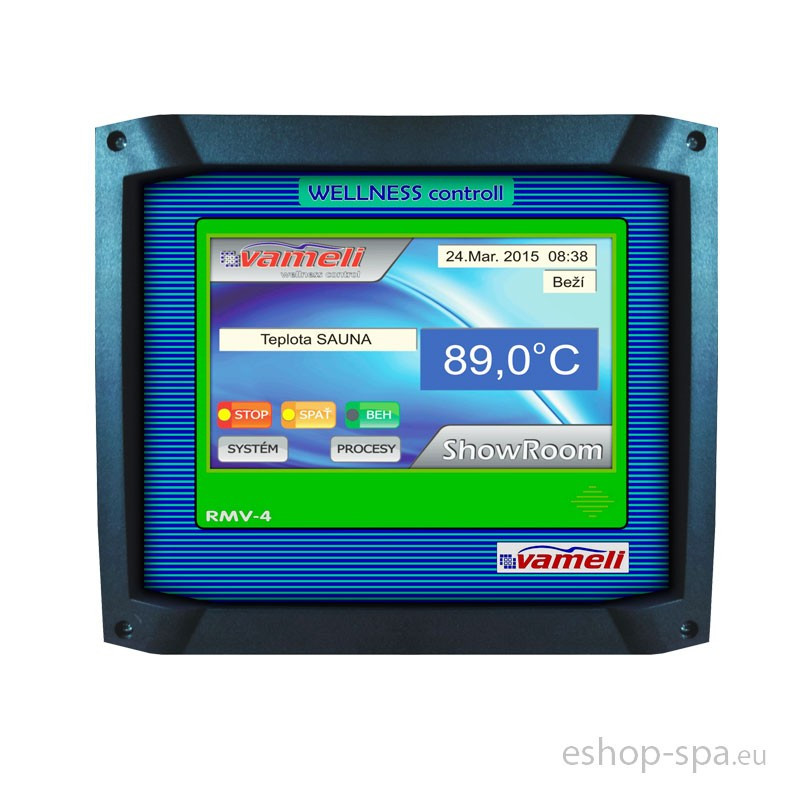

Control unit for sauna operation in the basic configuration with an integrated MP3 player.
Delivery policy
Return policy
In this basic configuration, the RMV4 control unit can simultaneously control up to 4 saunas: two sauna heaters and two steam generators. It provides comprehensive control of wellness systems, sauna heaters, steam generators, pool systems, showers and their effects, and mechanical and LED optical effects including dimming and color changes. The integrated MP3 player creates the right atmosphere inside the cabins. Operation is provided by a built-in 7-inch color touchscreen with 800 × 480 resolution and 16 million colors. The unit can connect to a TCP/IP network for remote computer control of installed systems. The appropriate configuration program must be loaded for correct operation.
| TECHNICAL SPECIFICATIONS | |
| RMV4 supply voltage | DC +12 V |
| RMV4 current consumption | max. 0.4 A excluding connected systems |
| G1–G8 transistor outputs | max. 3.5 A per channel |
| Level sensors | 5 V pulse |
| LR audio outputs | 25 W per channel |
| Audio load impedance | 2, 4, or 8 ohms |
| RMV4 weight | approx. 890 g |
| RMV4 dimensions (mm) | W: 228, H: 205, D: 62 |
RMV4 control unit configuration:
- full touchscreen control
- T1–T4 – 4× NTC or Dallas thermometer
- A1–A2 – analog output 0–10 V
- B1–B4 – analog input
- G1–G8 – 2× RGB LED strip or 8× +12 V, 1.5 A output
- MP3 – SD-card audio player
- NET – TCP/IP communication
- custom graphics as a screen saver or presentation
600002
15 Items
Data sheet
- Width
- 23 cm
- Depth
- 6 cm
- Height
- 20 cm
